Sleeve Series

GD-0030 7:24 MS adapter

Item No.: CO154859734
Send Enquiry

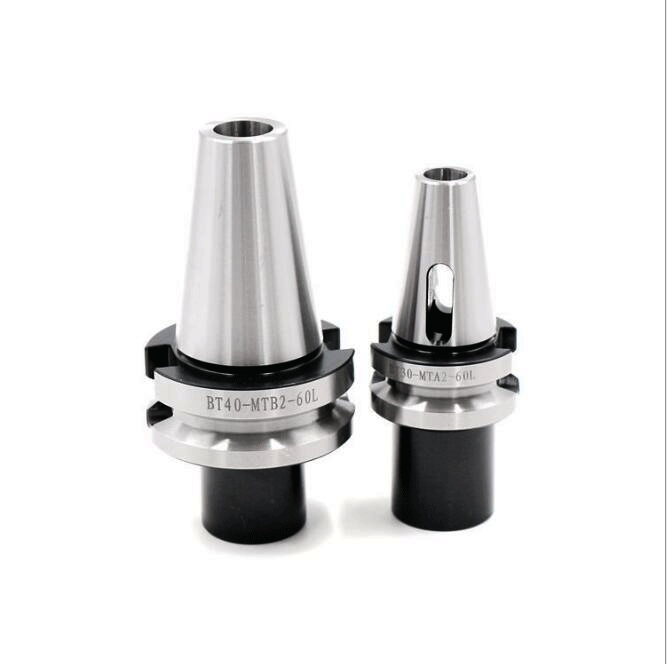

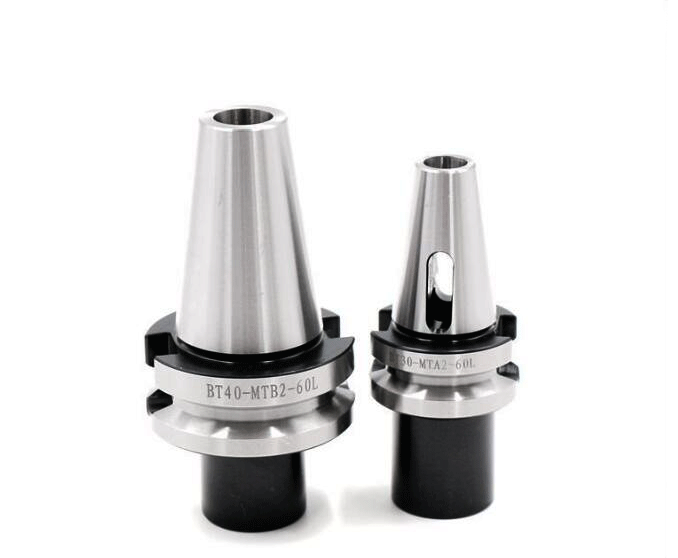

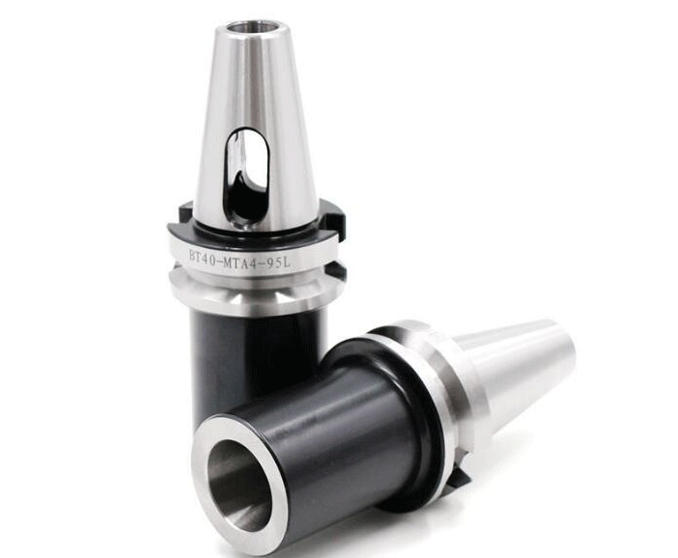

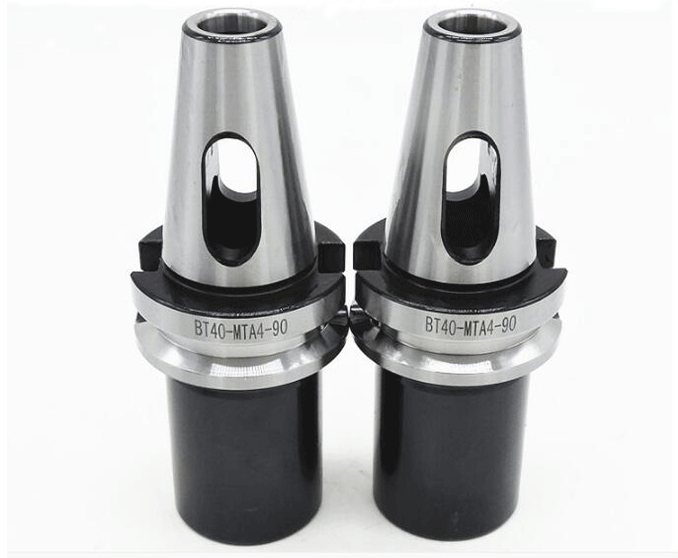

7:24 TO MS ADAPTER WITH TANG:
1material:spring steel
2.hardness:HRC58-62
3. model no. DIN20807:24 TO MS ADAPTER WITH TANG:
1material:spring steel
2.hardness:HRC58-62
3. model no. DIN2080

GD0029		7:24 TO MS ADAPTER(DRAW BAR TYTE)
Order No.	7:24 NO.S	MS.NO.T	D(mm)	D1(mm)	d(mm)	L(mm)	Figure
B30-1W	30	MS1	25	31.75	12.065	105	1
B30-2W	30	MS2	32		17.780	118	2
B30-3W	30	MS3	40		23.825	155	2
B40-1W	40	MS1	25	44.45	12.065	120	1
B40-2W	40	MS2	32		17.780	120	1
B40-3W	40	MS3	40		23.825	140	2
B40-4W	40	MS4	48		31.267	178	2
B40-5W	40	MS5	61		44.399	238	2
B50-1W	50	MS1	25	69.85	12.065	160	1
B50-2W	50	MS2	32		17.780	160	1
B50-3W	50	MS3	40		23.825	160	1
B50-4W	50	MS4	48		31.267	180	1
B50-5W	50	MS5	61		44.399	210	2
