Collets series

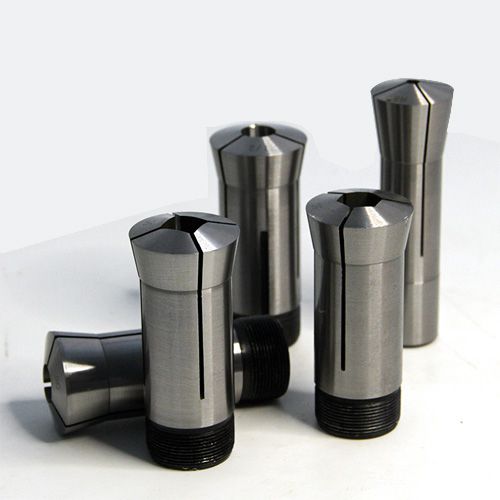

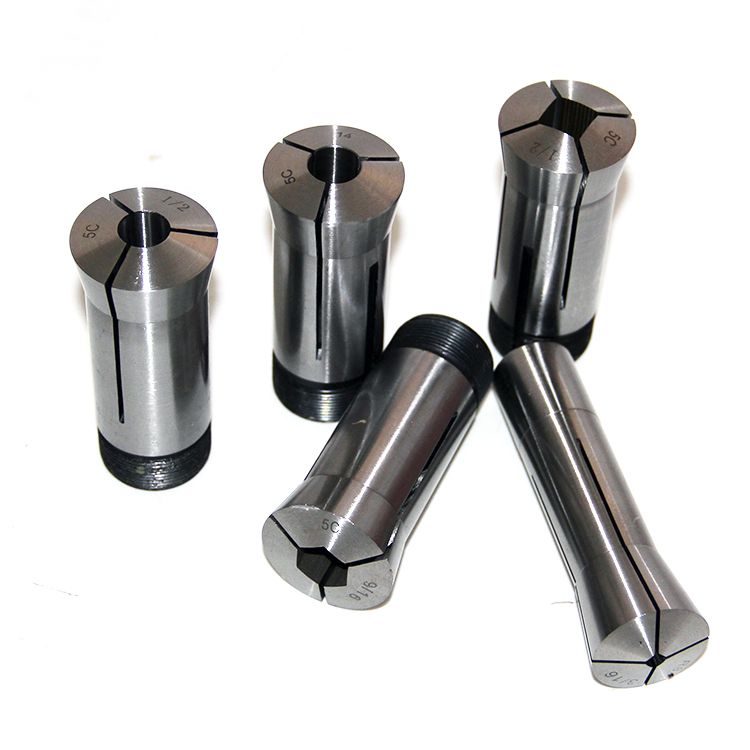

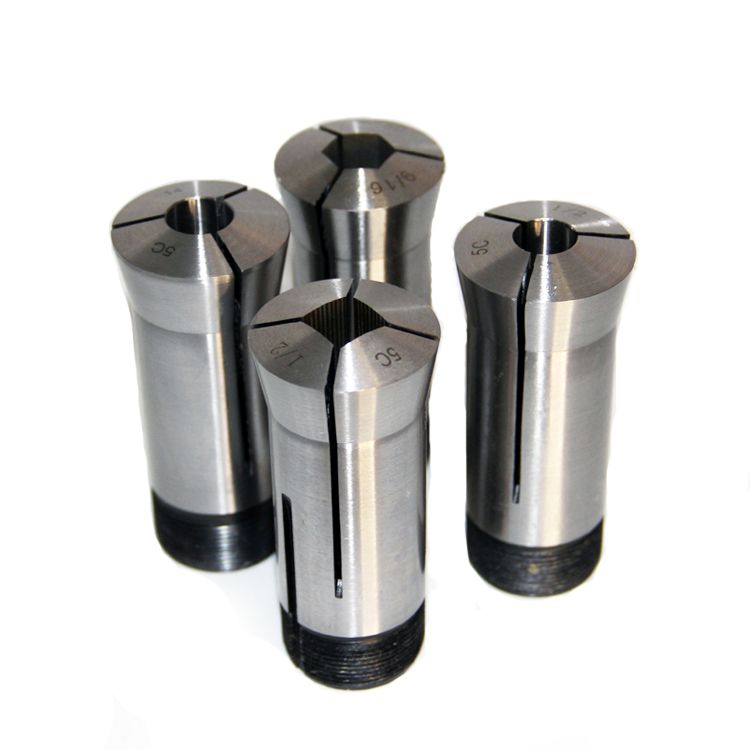

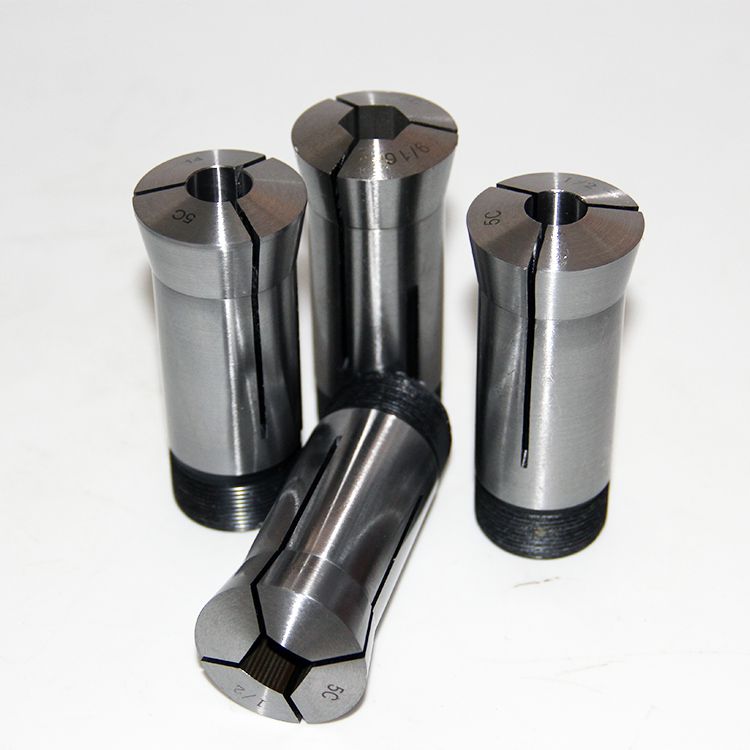

GD-0012 5C COLLETS
- Item No.: CO15413734
- Send Enquiry
1.Products name : 5C COLLETS
2.Material:65Mn
3.Hardness: clamping part HRC55-60 elastic part HRC40-45
4.This unit is applicable to all sorts of lathes,which spindle taper hole is 5C,such as automatic lathes,CNC lathes etc.
5.Accuracy:0.015mm
6.Type:Round Square Hex
7.Mini order quantity: 10pcs
8.Package : Paper box
9.Brand : GD-TOOLS
| GD-0012 | 5C COLLET | ||||
| Order No. | Type | Clamping range | Wt(kg) | ||
| mm | In | ||||
| 5C-01-d | Round | 1-28 | 1/32-1-1/8 | 0.24 | |
| 5C-02-S | Square | 3-29 | 1/8-3/4 | 0.24 | |
| 5C-03-H | Hex | 3-22 | 1/8-7/8 | 0.24 | |
Inspection of Accuray
d
L
Run out
mm
in
mm
in
mm
1-1.6
1/32-1/16
6.35
0.0005
0.013
>1.6-3
>1/16-1/8
12.7
>3-10
>1/8-3/8
25.4
>10-16
>3/8-5/8
38.1
>16-20
>5/8-7/8
50.8
